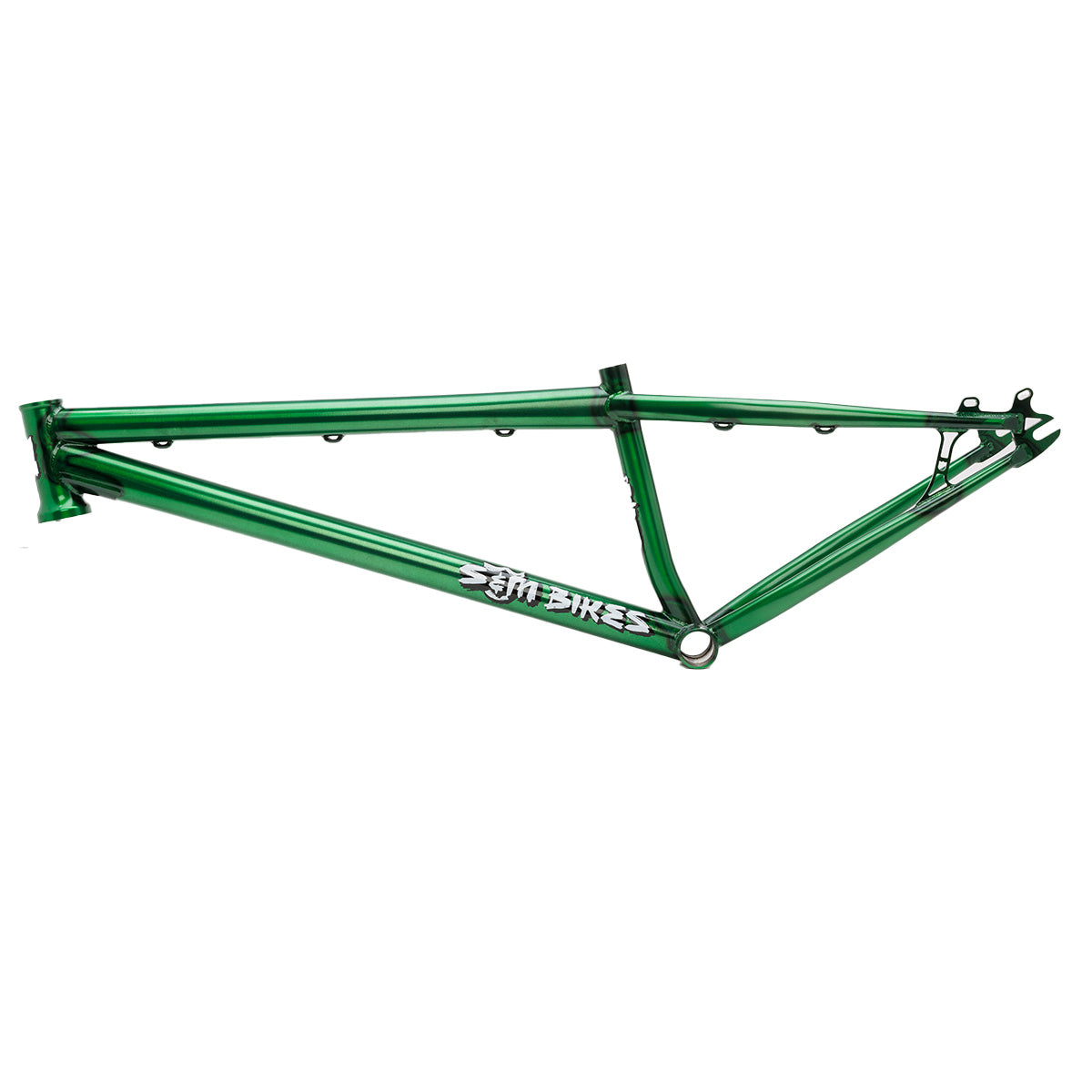

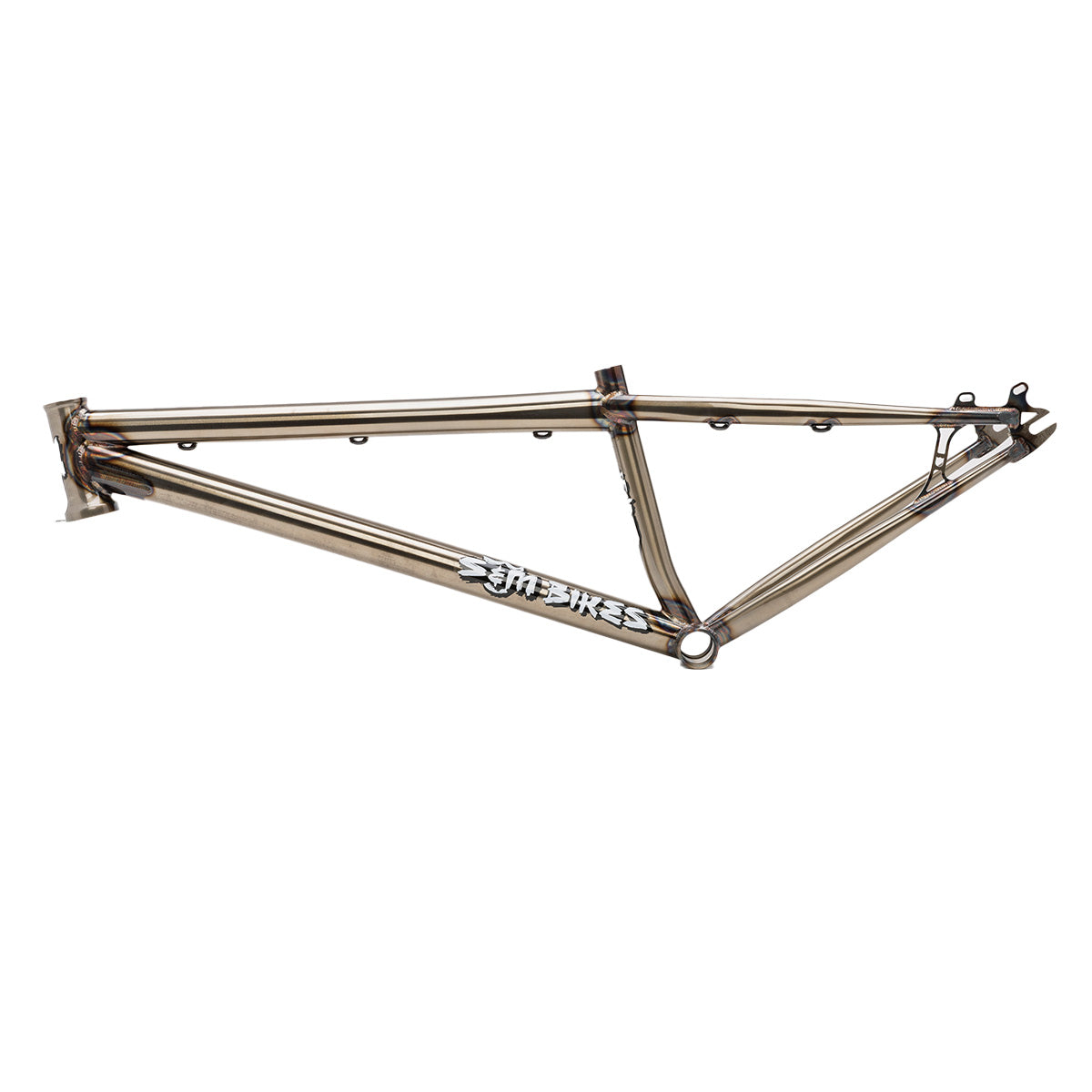

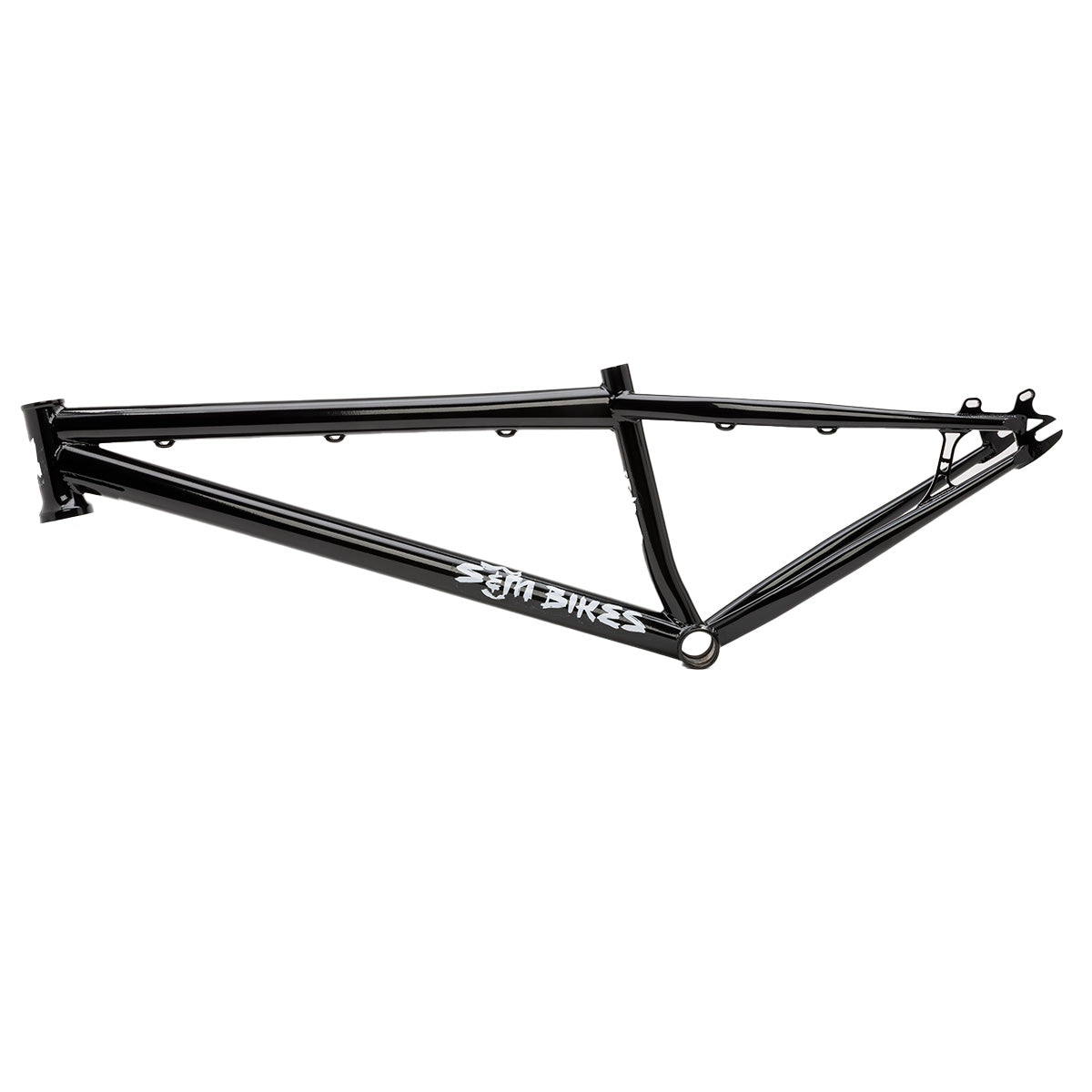

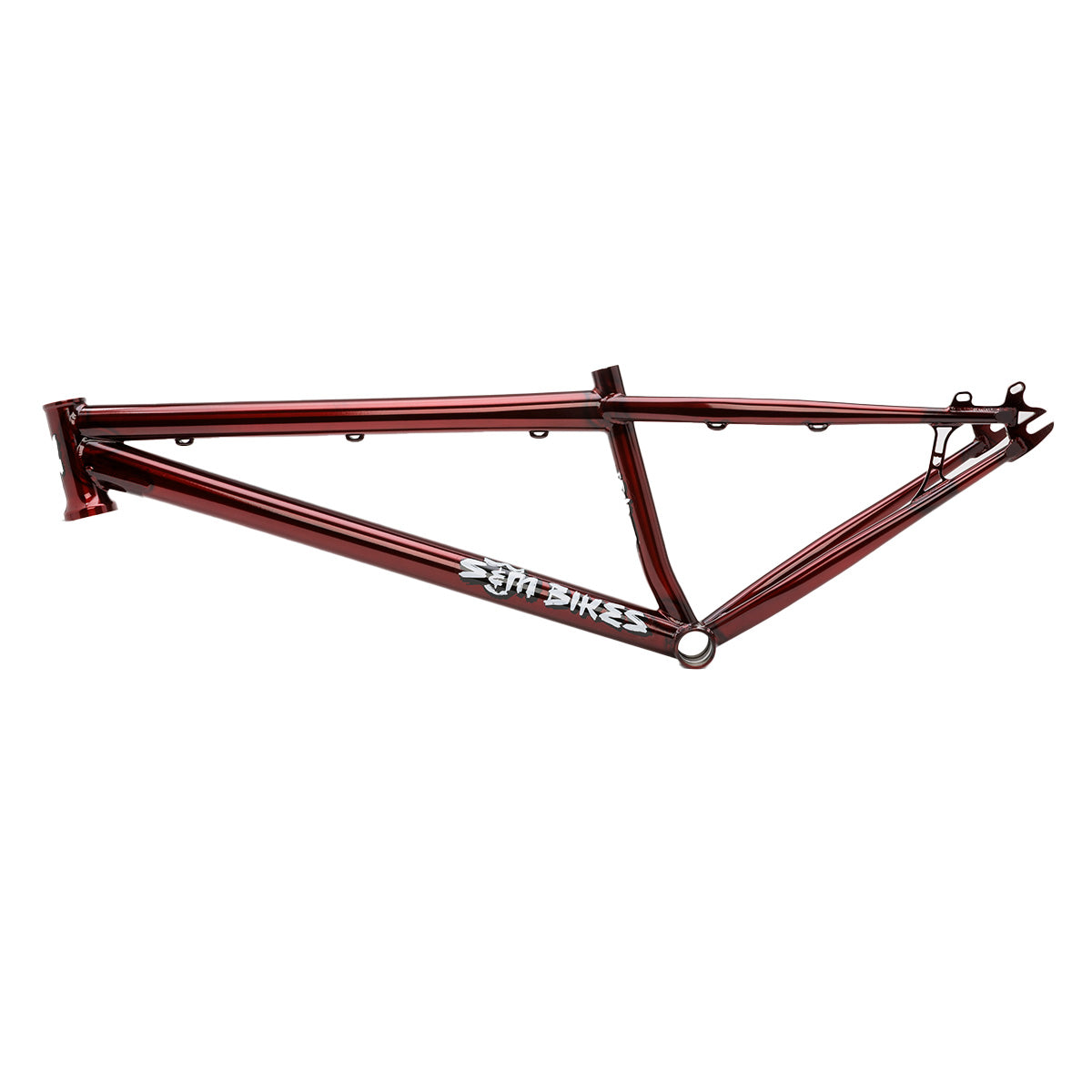

S&M Big Jumper 26" Frame
2
sold in last
8
hours
In stock
01-BJ-22-BS
£499.98
The S&M Big Jumper 26" Dirt Jump Frame is hand made in the USA and now has an engraved headtube, increased tire clearance and a T-Slot for better seat post clamping. Geometry based on 100 – 120mm Suspension or equivalent rigid fork Headtube accepts 1.5” Tapered Steerer Disc size is...
customers are viewing this product
The S&M Big Jumper 26" Dirt Jump Frame is hand made in the USA and now has an engraved headtube, increased tire clearance and a T-Slot for better seat post clamping.
- Geometry based on 100 – 120mm Suspension or equivalent rigid fork
- Headtube accepts 1.5” Tapered Steerer
- Disc size is 160mm with 0mm IS to POST mount adapter

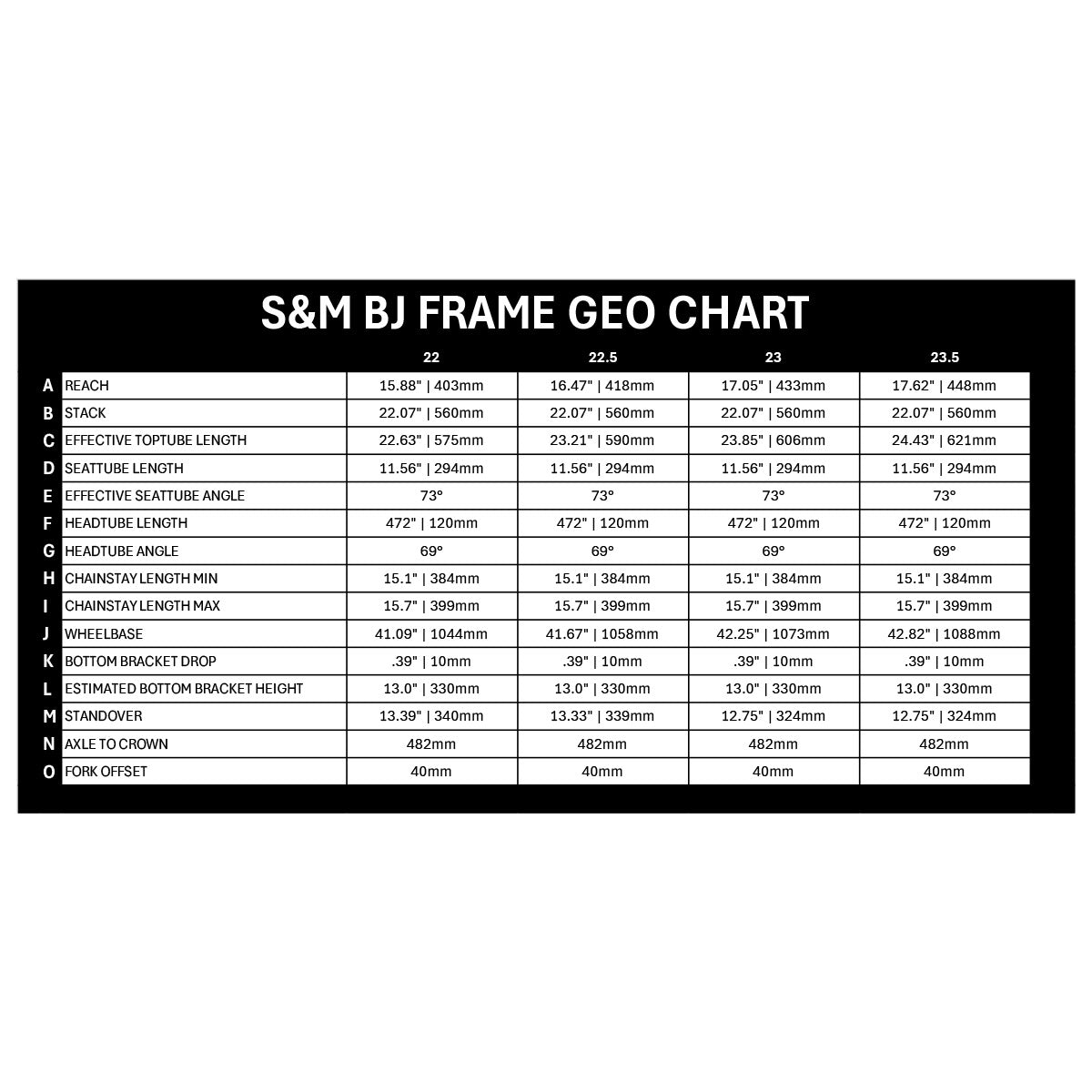

| TOP TUBE LENGTHS | 22″, 22.5″, 23″, 23.5″ |
| REAR END LENGTH | 15.1″ Slammed |
| HEAD TUBE ANGLE | 69° |
| STANDOVER HEIGHT | 10″ |
| B.B. HEIGHT | 12.6″ (.400″ Drop) |
| SEAT TUBE ANGLE | 73° |
| HEAD TUBE | 120mm Tall Integrated 42/52 Style |
| B.B. STYLE | 73mm Euro BB |
| BRAKE MOUNTS | 160mm Disc with 0mm IS to POST mount adaptor |
| DROPOUTS | 3/8″ Slot, 135mm Spacing w/Integrated Tensioners |
| SEAT POST SIZE | 27.2mm Post – 30mm Clamp |
| WEIGHT | 6.15 lbs (22″ TT) |
| MAX TIRE | 26″ X 2.25″ slammed (2.35″ pulled back a bit) |
| MAX SPROCKET | 30T standard chain line (32 with additional Spacers) |
