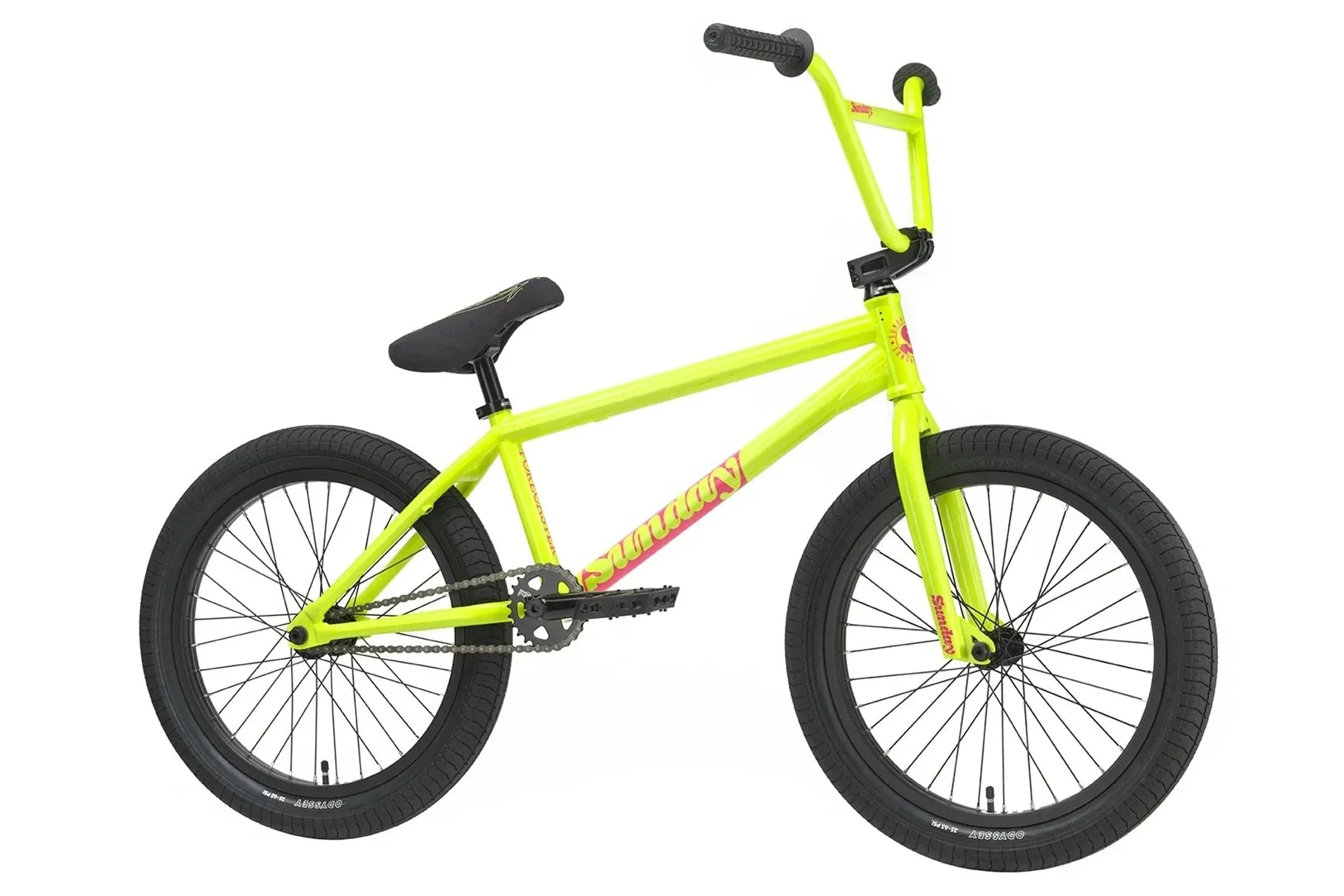

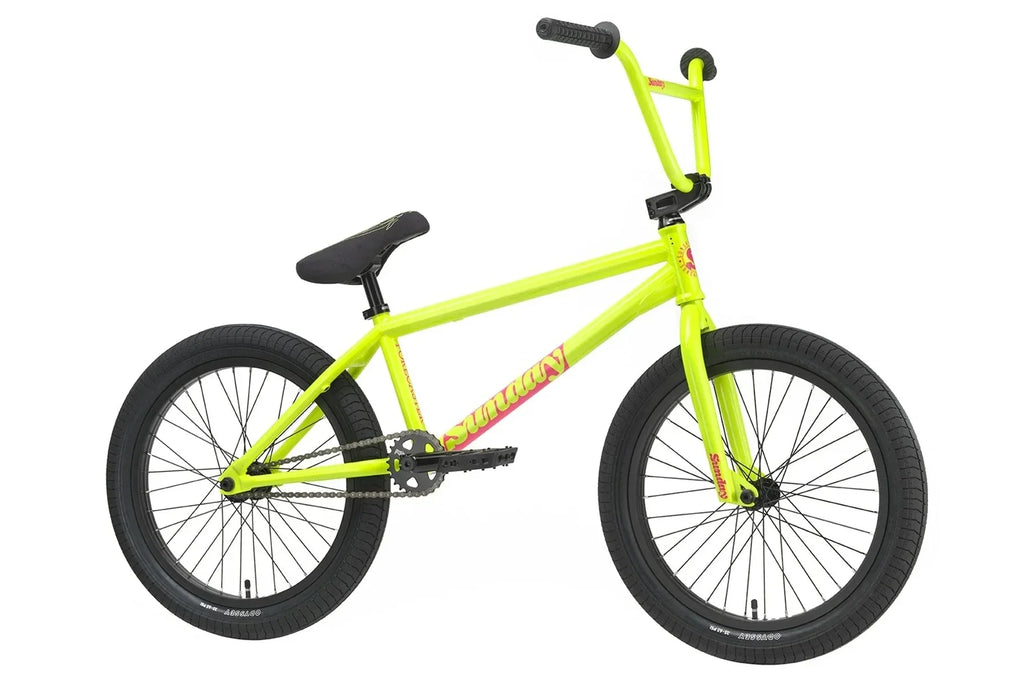

Sunday Aaron Ross Signature Bike
The Sunday Aaron Ross Signature Bike not only uses his signature parts but mimics a bike for serious riders.
- 100% Chromoly Frame
- Sunday Freeze Top Load Stem
- Odyssey Keyboard v1 Grips
- Odyssey Slugger Big Stitch Seat
- Removable Brake Hardware
- Odyssey Clutch v2 Freecoaster
- Sealed Front & Rear Hubs
- Odyssey Stage 1 Rims
- Odyssey Path Pro OEM 2.40" Tires
Specifications
Frame: Sunday Forecaster, 20.5" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware
Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load

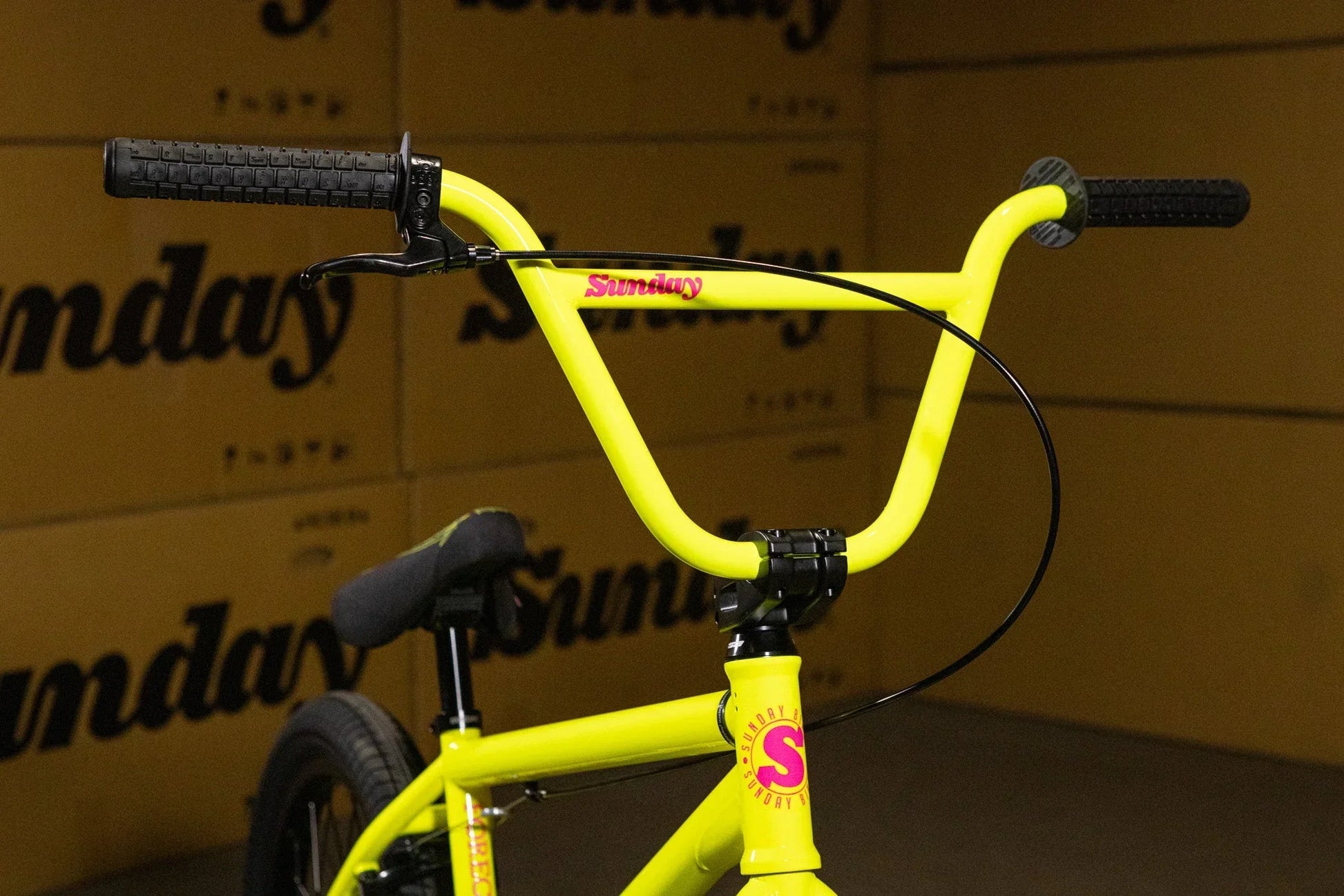

Handlebar: Sunday, 2-piece

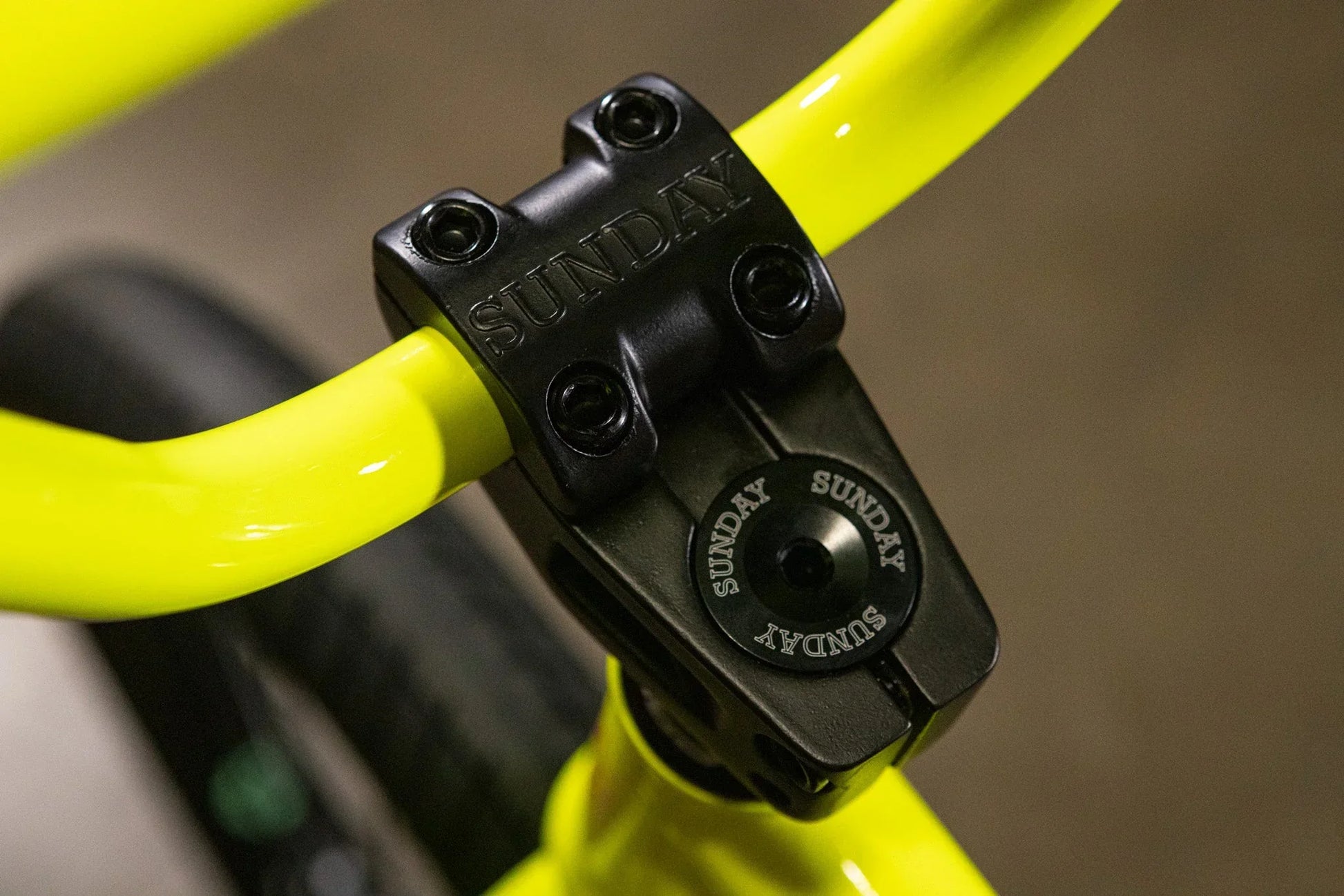

Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield

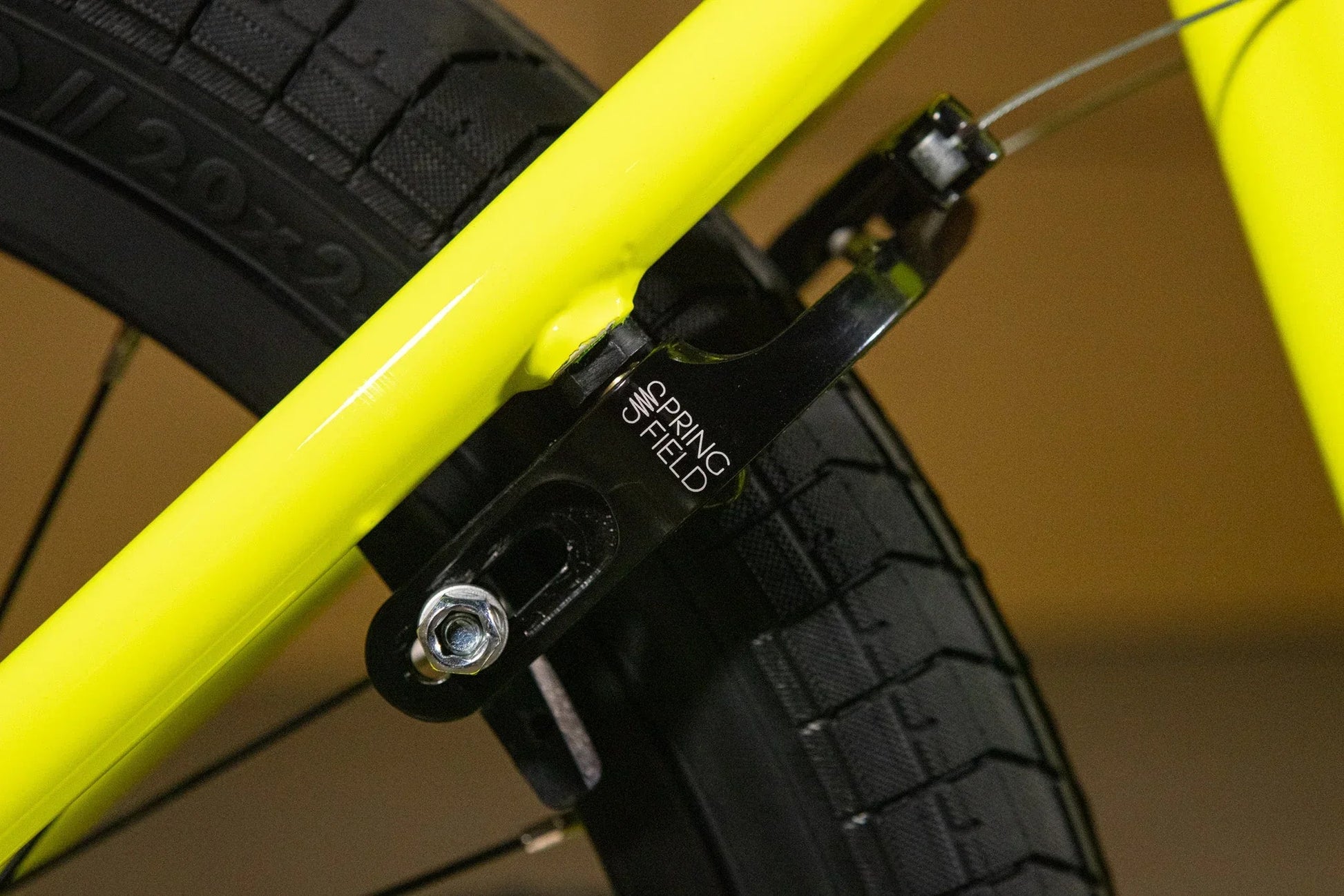

Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic

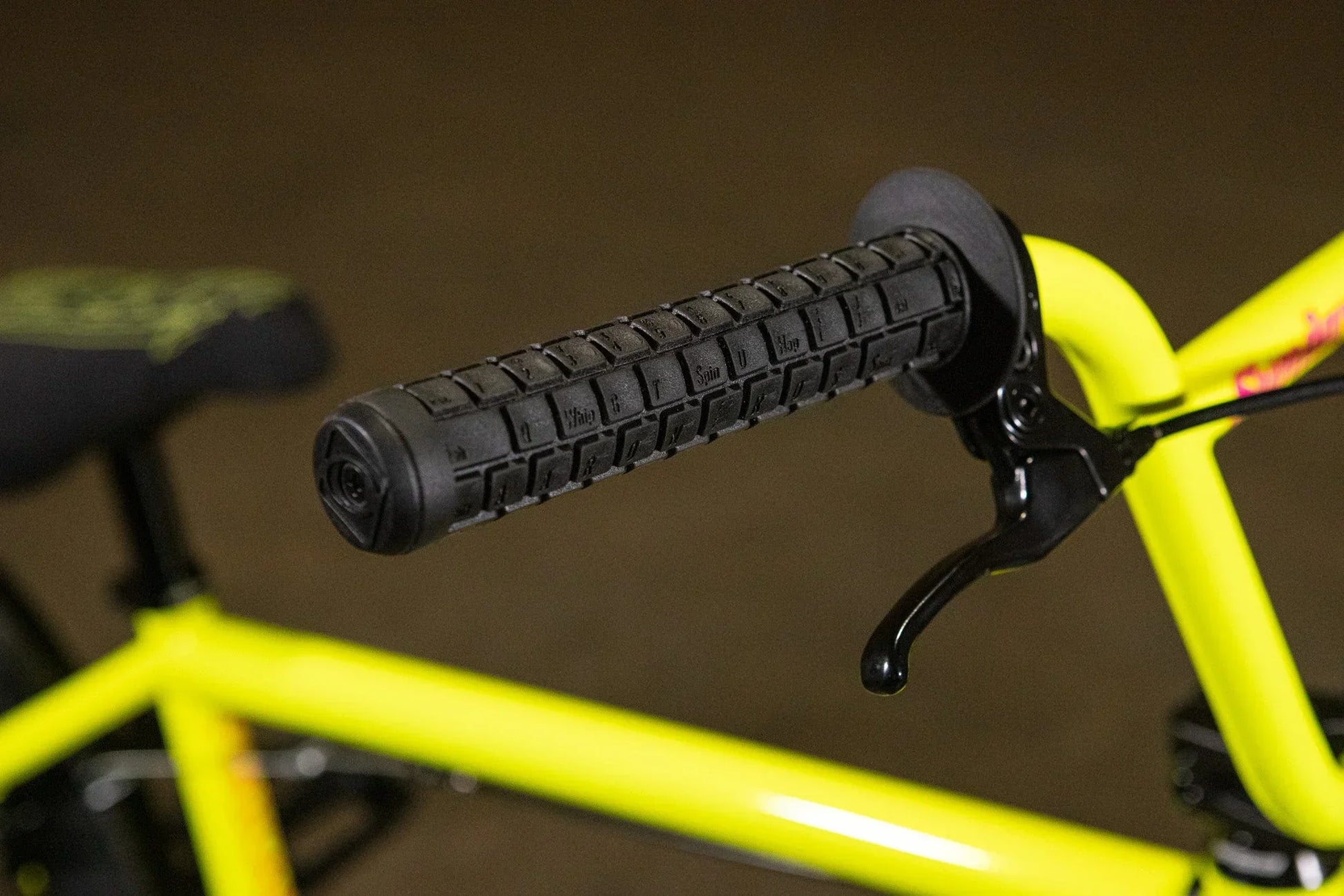

Grips: Odyssey Keyboard v1 Grip

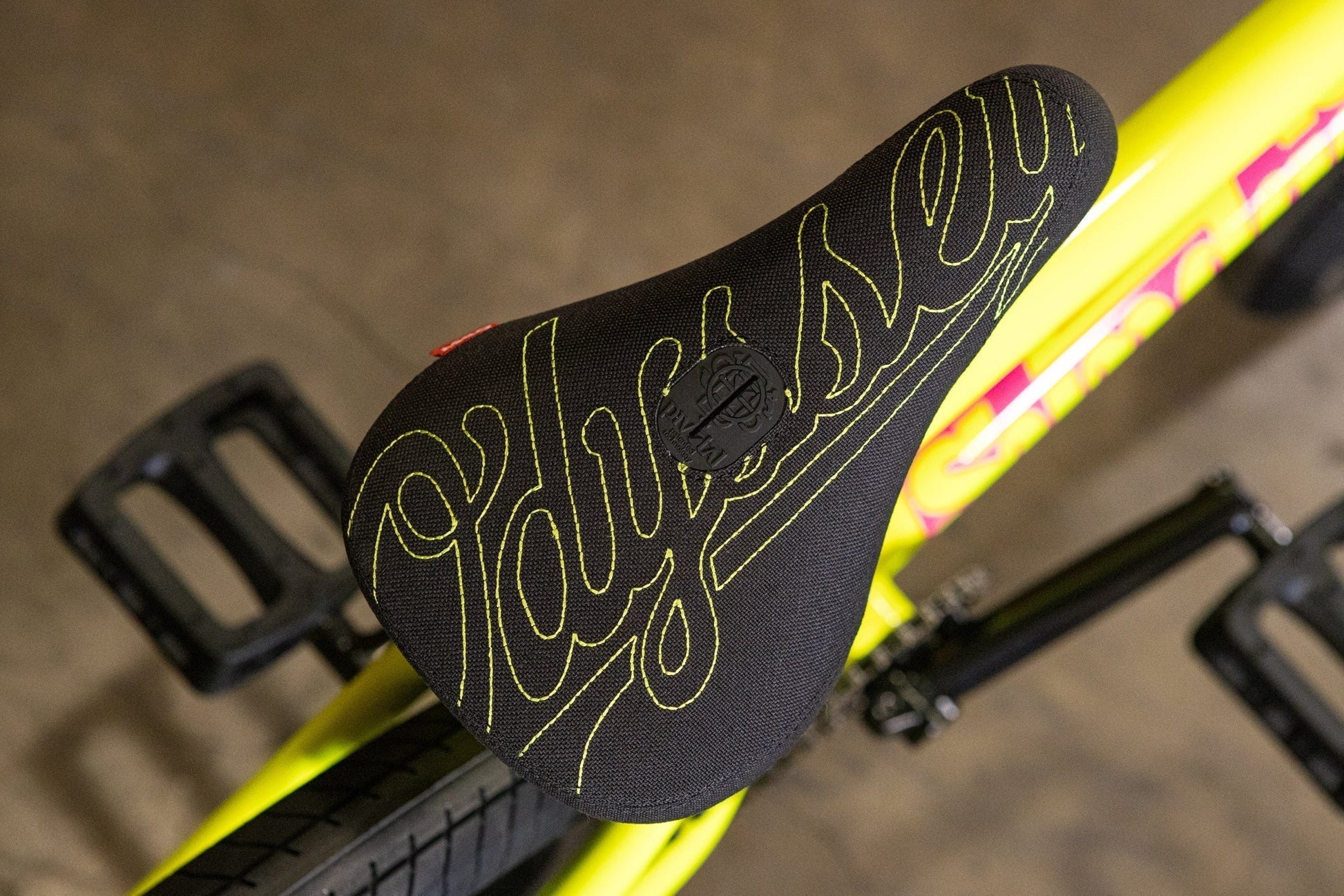

Seat: Odyssey Slugger Big Stitch, Pivotal
Seat post: Sunday Pivotal
Seat Clamp: Sunday

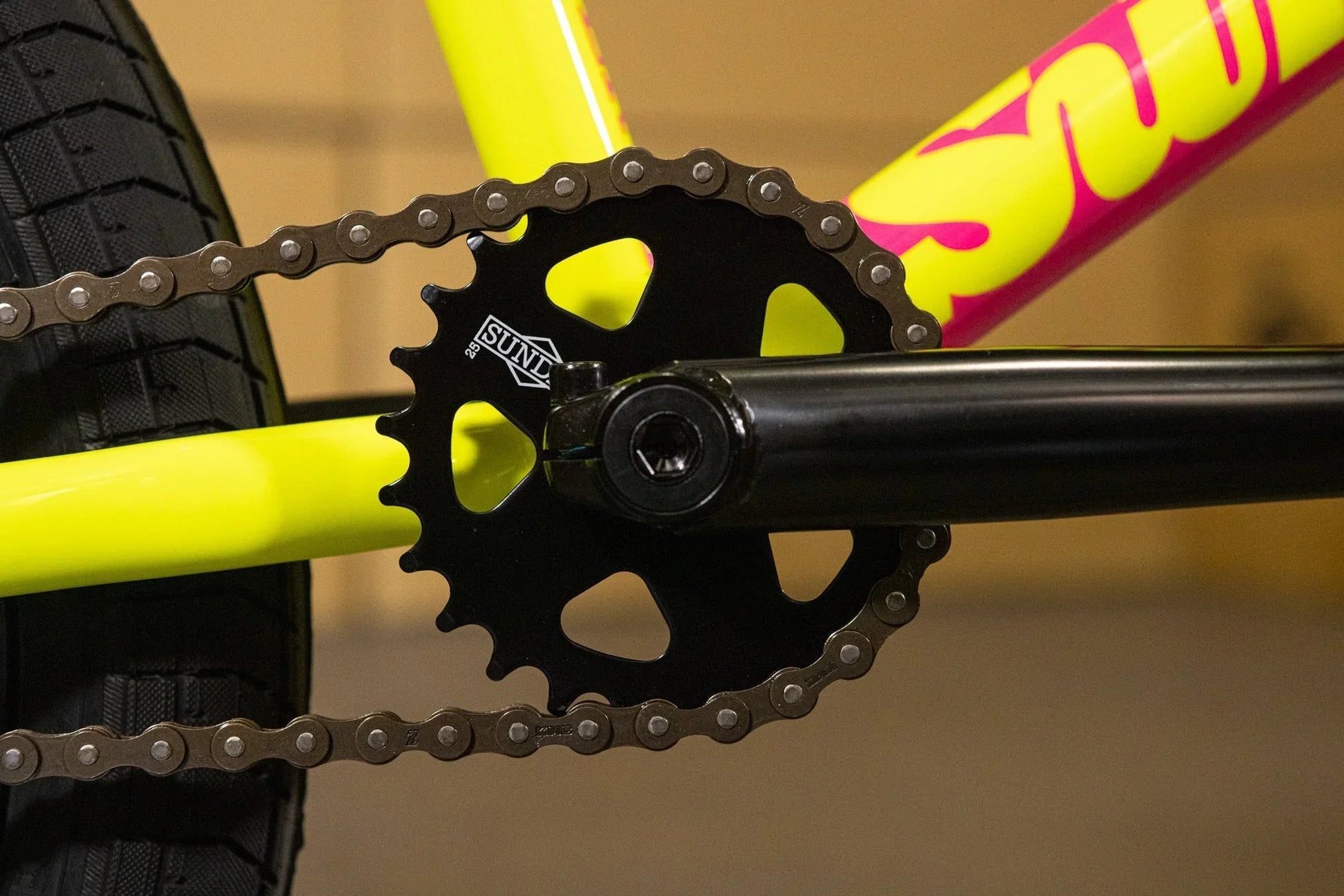

Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

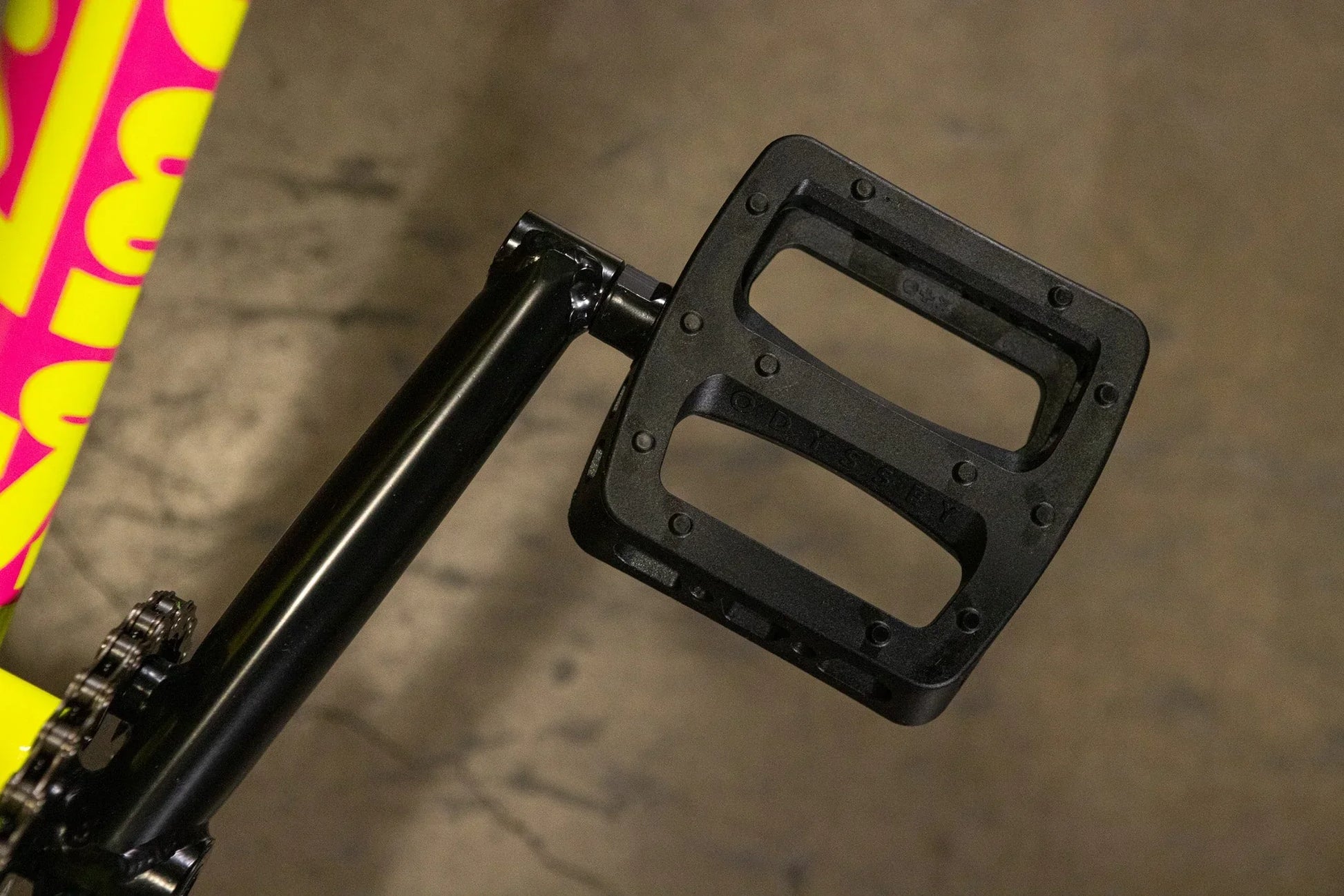

Pedals: Odyssey Twisted PC Pro

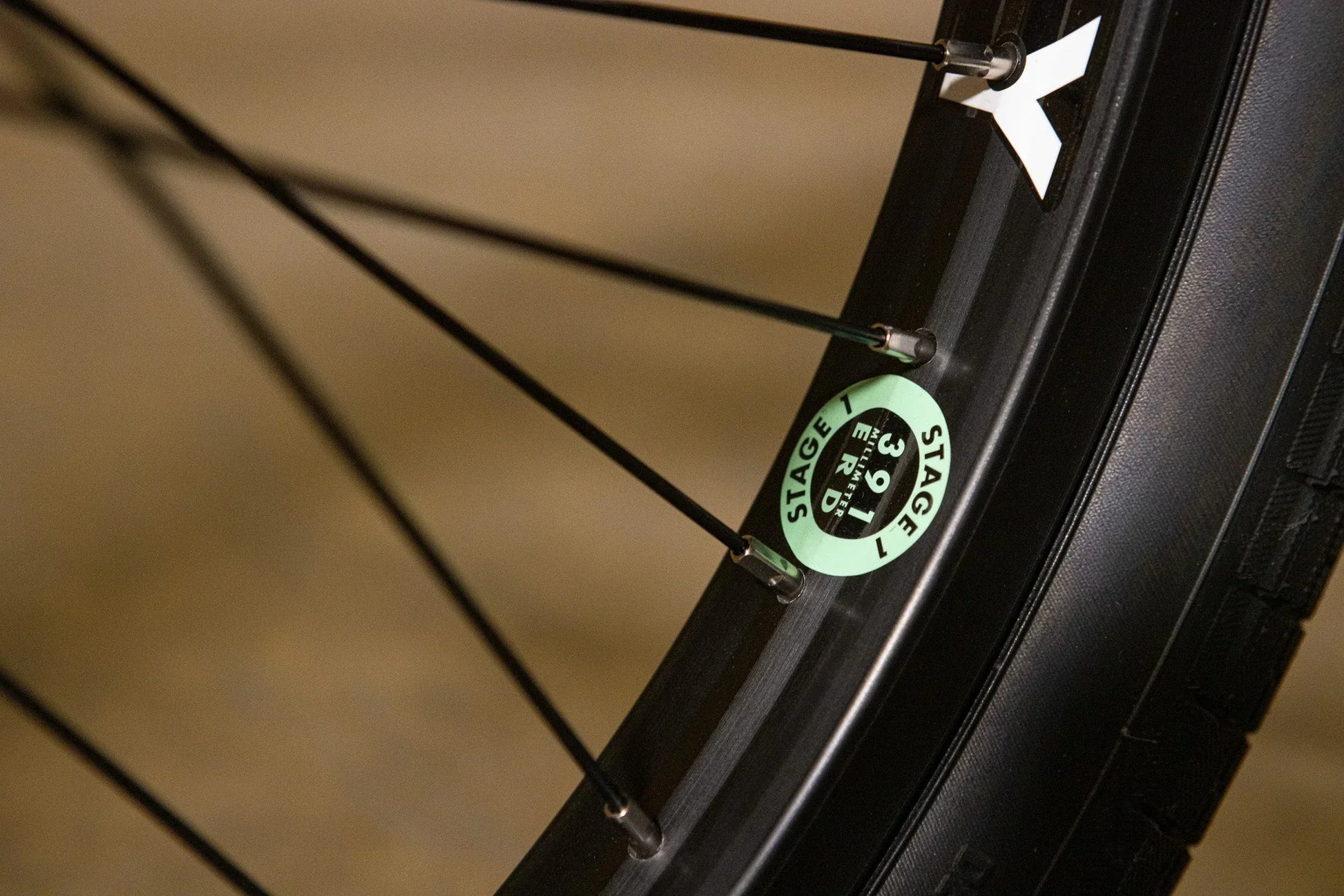

Rims: Odyssey Stage 1, 20", 36H

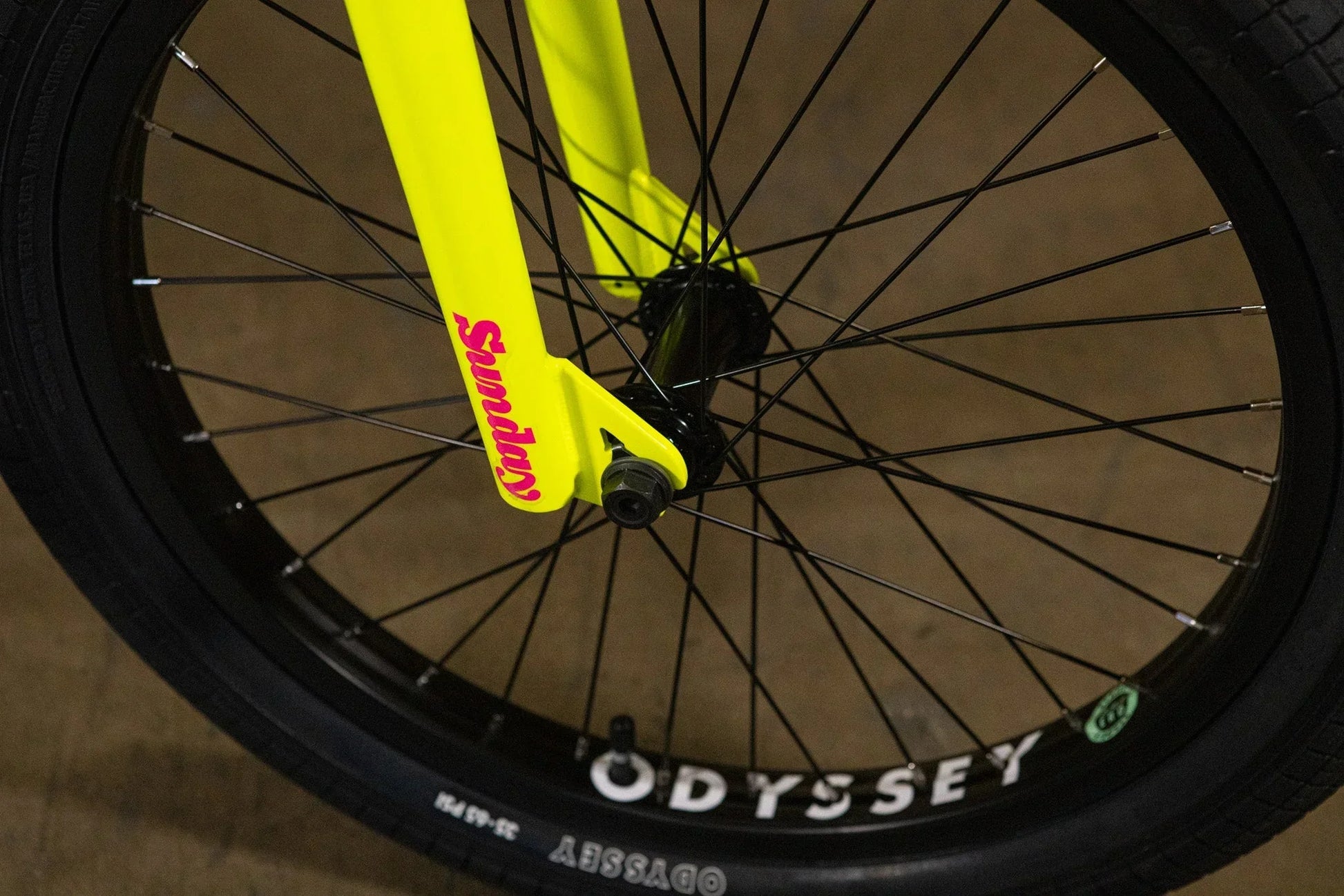

Front Hub: Sunday, 36H, low-flange, sealed, 3/8" inbound axle bolts

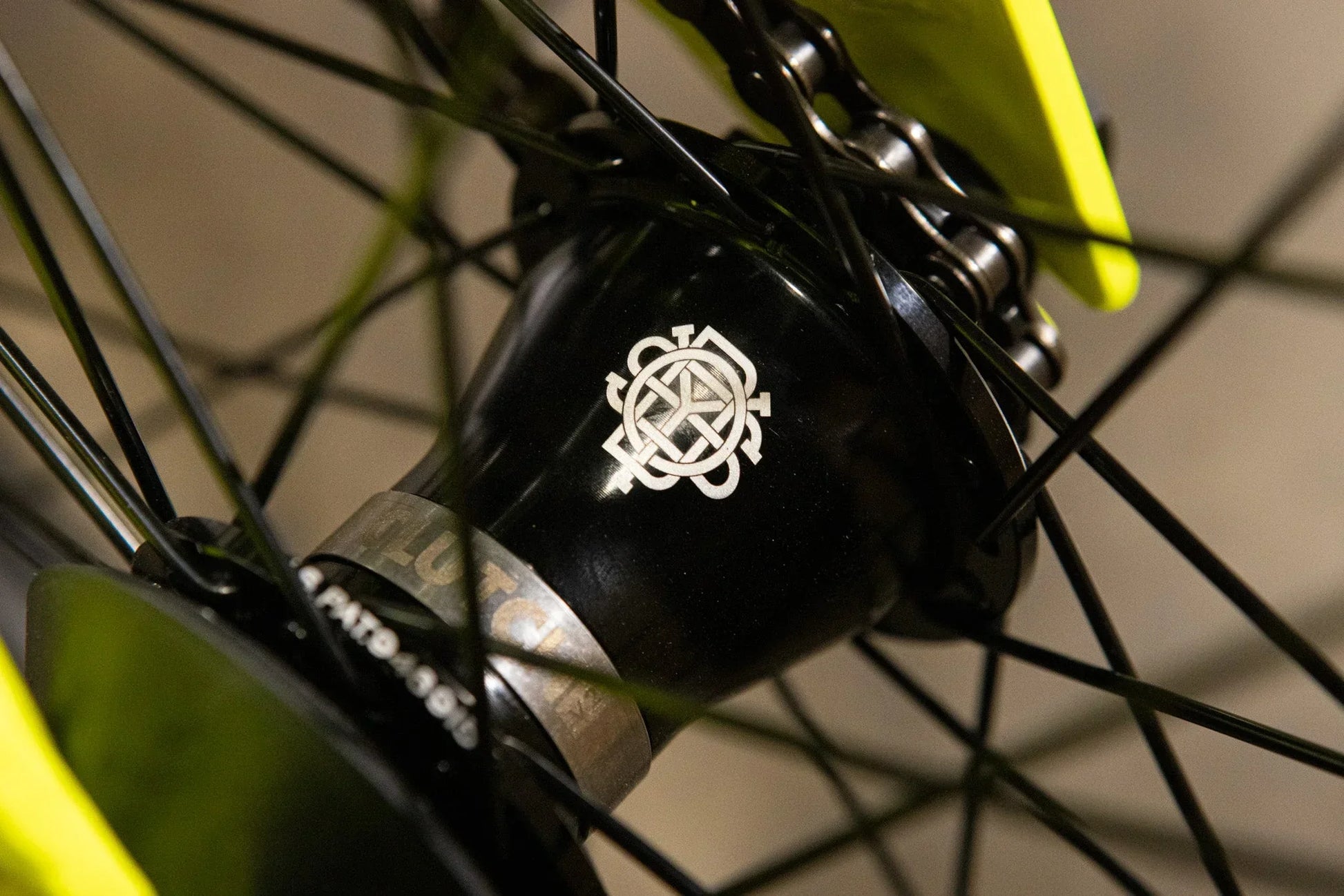

Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, RHD, non-drive side plastic guard
Spokes: 14g steel, black

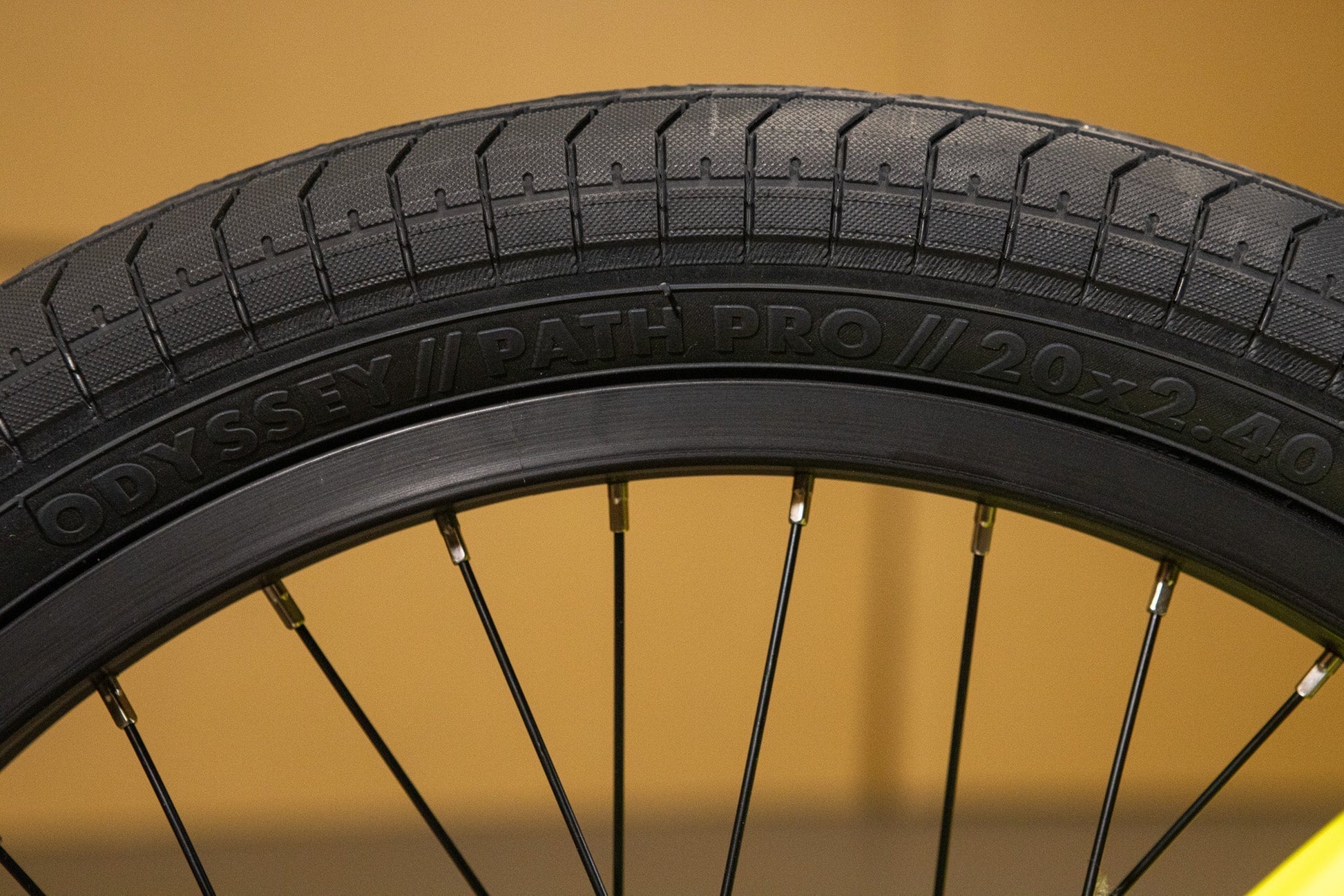

Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 26.78lbs (with brakes)
Frame Geometry
Top Tube Length: 20.5"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.7"
Standover: 9"
Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
